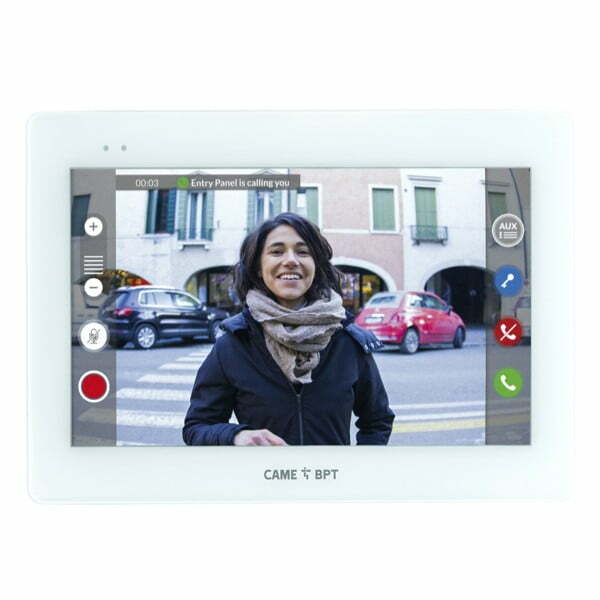

XTS 7" Touch Screen Monitor IP360 WiFi (White)

DescriptionThe CAME BPT XTS 7″ Touch Screen Monitor IP360 WiFi (White) is robustly designed for high-traffic commercial sites where consistent technical throughput is the baseline requirement for building security.XTS 7″ Touch Screen Monitor IP360 WiFi (White)Handsfree video entry monitor for IP360 systemsFull touch video intercom for IP360 system, 7″ TFT touch-screen display, WiFi and Graphical User Interface – white.Surface mounted monitor with 7˝ TFT touch-screen display with Optical Bonding technology, integrated WiFi for remote calls on smartphones running the dedicated app. User interface for managing video intercom unctions, intercom calls, video-messaging, and text messaging. It uses SIP protocol and G711 audio codec and H.264 video codec. RJ45 port for network, PoE or local connection. On-board web server for configuring and updating firmware. It includes bracket for surface mounting on 503 box (horizontal) and Ø 60 mm round box. Ready for flush mounting with dedicated box.Features:Full-duplex audio speakerphone7˝ TFT display Full touch-screen with Optical Bonding anti-glare technology for enhanced readability in brightly lit settingsRJ45 port for directly connecting to the EthernetOn-board WiFi for remotely controlling callsLocal or PoE (Powered over Ethernet) power supplyCustomizable user interface with UI Creator softwareUp to 19 mobile devices for managing the system from any remote locationConfigurable quick controls (default main entrance door-opener)List of AUX commands for activating auxiliary functions“Panic” function for emergency calls to the porter (if present on the system)Exclude ringtone key (the alert LED lights up when silenced)Self-inserting video of entry panels with cyclic selectionUnlimited intercom calls to other receivers and mobile devicesContacts list and favorites listVideo answering service, stores up to 100, 10-second audio and video messages.Audio and video recording during conversationsSending and receiving text messages from the porterLive feeds of the connected IP video camerasAutomatic opening function during business hoursStandard SIP protocol, H.264 video codec, G711 audio codecOn-board web server for configuring and managing via the browserSpecification:Dimensions (mm) 185 x 129 x 24Local power supply (V) 14 ÷ 18 DCPoE power supply IEEE 802.3af-PDConsumption in stand-by mode (mA) 340Max. absorption (mA) 420Operating temperature (°C) 0 ÷ 40Protection rating (IP) 30Video standard H.264Frequency (MHz) 2.412 – 2.472Wireless Standard IEEE 802.11b/g/nColour WhiteThis hardware acts as a primary interface for network-ready access control, working in conjunction with professional door communication systems and other multi-tenant entry management.Technical Insight:Bus-driven power delivery simplifies installation while ensuring consistent voltage across all connected handsets. The high-impact chassis is rated for longevity, protecting internal circuitry against both weather and physical stress.Compliance: Designed for professional-grade reliability in compliance with UKCA/CE standards for CAME BPT security networks.Evolution-EE: Security Logistics Partner��️ Support: 100% Genuine CAME BPT equipment.�� Dispatch: Rapid UK warehouse logistics.�� Expertise: Direct line to technical commissioning.✅ Assurance: Certified safety and security standards.
