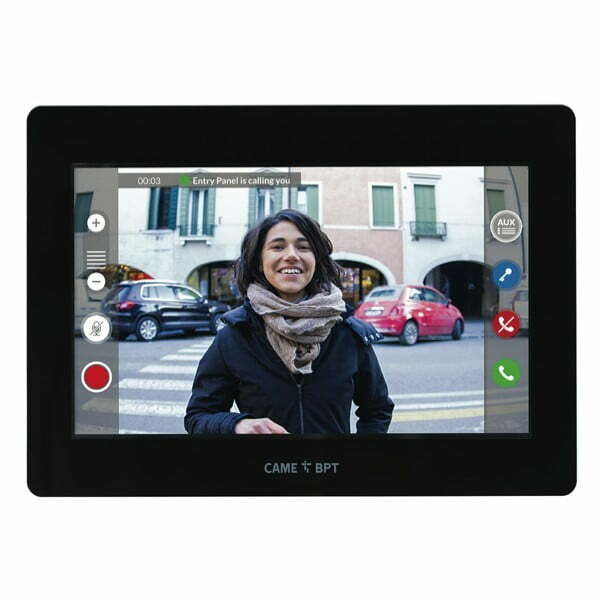

XTS 7" Touch Screen Monitor X1/XIP WiFi (Black)

DescriptionSetting a new benchmark in intercom and access control, the CAME BPT XTS 7″ Touch Screen Monitor X1/XIP WiFi (Black) combines sophisticated seamless communication with CAME BPT’s signature attention to detail.XTS 7″ Touch Screen Monitor X1/XIP WiFi (Black)Handsfree video entry monitor for X1 and XIP systemsFull-touch video intercom for X1 system, 7″ TFT touch screen display, WiFi and Graphical User Interface – white.Surface mounted monitor with 7˝ TFT touch-screen display with Optical Bonding technology, integrated WiFi for remote calls on smartphones running the dedicated app. User interface for managing video intercom functions, intercom calls, video-messaging. It uses SIP protocol and G711 audio codec and H.264 video codec. Local power supply 14 – 18 V DC. On-board web server for configuring and updating firmware. It includes bracket for surface mounting on 503 box (horizontal) and Ø 60 mm round box. Ready for flush mounting with corresponding box.Features:Half-duplex audio speakerphone7˝ TFT display Full touch-screen with Optical Bonding anti-glare technology for enhanced readability in brightly lit settingsOn-board WiFi for remotely controlling calls over smartphones and tablets running the specific AppLocal power supply 14 -18 V DCUp to 4 mobile device for managing the system from any remote locationConfigurable quick controls: main entrance door-opener, auxiliary commandList of AUX commands for activating auxiliary functions“Panic” function for emergency calls to the porter (if present on the system)Audio video settings: ringtone volume, display brightness, interface backgroundsDifferent ringtones for entry panels and landingsExclude ringtone key (the alert LED lights up when silenced)Self-inserting video of entry panels with cyclic selectionIntercom calls to other receivers and smartphones and tabletsContacts list and favorites listVideo answering service, stores up to 100, 10-second audio and video messages.Audio and video recording during conversationsLive feeds of the connected IP video camerasBusiness function: for automatic door opening during business hoursBlock display function for cleaningStandard SIP protocol, H.264 video codec, G711 audio codecOn-board web server for configuring and managing via the browserSpecification:Dimensions (mm) 185 x 129 x 24Local power supply (V) 14 ÷ 18 DCLocal absorption (mA) 520Consumption in stand-by mode (mA) 360Operating temperature (°C) 0 ÷ 40Protection rating (IP) 30Video standard PAL/NTSCFrequency (MHz) 2.412 – 2.472Wireless Standard IEEE 802.11b/g/nColour BlackThis hardware acts as a primary interface for multi-tenant entry management, working in conjunction with high-security visitor entry stations and other weatherproof external entry panels.Technical Insight:Optical modules are specifically tuned for low-light conditions, providing 24/7 visibility at the entry point. Integrated noise-cancelling algorithms ensure crystal-clear communication regardless of ambient environmental sounds.Compliance: Designed for professional-grade reliability in compliance with UKCA/CE standards for CAME BPT security networks.Evolution-EE: Security Logistics Partner��️ Support: 100% Genuine CAME BPT equipment.�� Dispatch: Rapid UK warehouse logistics.�� Expertise: Direct line to technical commissioning.✅ Assurance: Certified safety and security standards.
