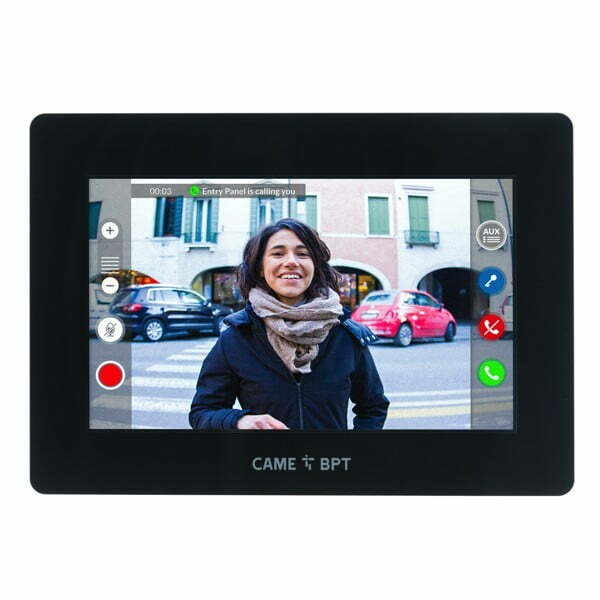

XTS 5" Touch Screen Monitor IP360 (Black)

DescriptionThe CAME BPT XTS 5″ Touch Screen Monitor IP360 (Black) represents the apex of intercom and access control technology, delivering secure entry management that security installers can depend on.XTS 5″ Touch Screen Monitor IP360 (Black)Handsfree video entry monitor for IP360 systemsFull-touch video intercom for IP360 system, 5˝ TFT touch screen display, with Graphical User Interface – white. Surface mounted monitor with 5˝ TFT touch screen display with Optical Bonding technology. User interface for managing video intercom functions, intercom calls, video-messaging, and text messaging. It uses SIP protocol and G711 audio codec and H.264 video codec. RJ45 port for network, PoE or local connection. On-board web server for configuring and updating firmware. It includes bracket for surface mounting on 503 box (horizontal) and Ø 60 mm round box. Ready for flush mounting with dedicated box.Features:Full-duplex audio speakerphone5˝ TFT display Full touch-screen with Optical Bonding anti-glare technology for enhanced readability in brightly lit settingsRJ45 port for directly connecting to the EthernetLocal or PoE (Powered over Ethernet) power supplyCustomizable user interface with UI Creator softwareConfigurable quick controls (default main entrance door-opener)List of AUX commands for activating auxiliary functions“Panic” function for emergency calls to the porter (if present on the system)Audio video settings: ringtone volume, display brightness, interface backgroundsDifferent ringtones for entry panels and landingsExclude ringtone key (the alert LED lights up when silenced)Self-inserting video of entry panels with cyclic selectionUnlimited calls to other receivers and smartphones and tabletsContacts list and favourites listVideo answering service, stores up to 100, 10-second audio and video messages.Audio and video recording during conversationsSending and receiving text messages from the porterLive feeds of the connected IP video camerasBusiness function: for automatic door opening during business hoursBlock display function for cleaningStandard SIP protocol, H.264 video codec, G711 audio codecOn-board web server for configuring and managing via the browserSpecification:Dimensions (mm) 138 x 98 x 24Local power supply (V) 14 ÷ 18 DCPoE power supply IEEE 802.3af-PDConsumption in stand-by mode (mA) 270Max. absorption (mA) 330Operating temperature (°C) 0 ÷ 40Protection rating (IP) 30Video standard H.264Colour BlackThis hardware acts as a primary interface for automated entry point management, working in conjunction with modular entry system hardware and other commercial access management.Technical Insight:Proprietary bus protocols ensure that data integrity is maintained even in installations with significant cable lengths. Optical modules are specifically tuned for low-light conditions, providing 24/7 visibility at the entry point.Compliance: Designed for professional-grade reliability in compliance with UKCA/CE standards for CAME BPT security networks.Evolution-EE: Security Logistics Partner��️ Support: 100% Genuine CAME BPT equipment.�� Dispatch: Rapid UK warehouse logistics.�� Expertise: Direct line to technical commissioning.✅ Assurance: Certified safety and security standards.
