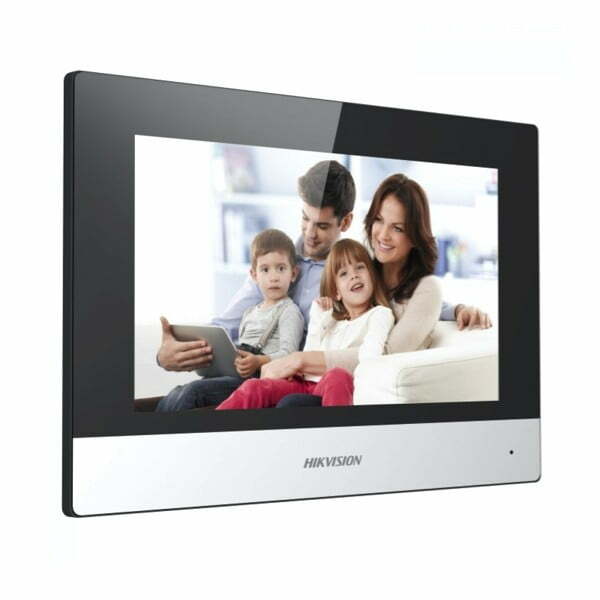

HikVision 7" Touch Screen WiFi

DescriptionA high-tier leap forward in intercom and access control, this HikVision HikVision 7″ Touch Screen WiFi provides encrypted signal processing that exceeds professional expectations.HikVision 7″ Touch Screen WiFi (DS-KH6320-WTE1)The HikVision DS-KH6320-WTE1 is a 7-inch touch screen video intercom indoor station which supports wireless network. The DS-2KH6320-WTE1 features a built-in omnidirectional microphone audio input and built-in loudspeaker audio output. It also comes with noise suppression and echo cancellation, giving users a clearer sound. It is powered by either a 12V DC power supply or standard PoE, consuming a maximum of 6W.Key FeatureUI V2.0: User friendly design7-inch colourful touch screen with resolution 1024 × 600Standard PoEStores messages and captured pictures in the TF cardRemote unlocking via the client software or the mobile clientViews live videos of door stations and linked camerasSupports wireless networkSpecificationSystemMemory 128 MBFlash 32 MBOperation system Embedded Linux operation systemDisplayDisplay screen 7-inch colourful TFT LCDDisplay resolution 1024 × 600Operation method Capacitive touch screenAudioAudio input: Built-in omnidirectional microphoneAudio output: Built-in loudspeakerAudio compression standard: G.711 UAudio compression rate: 64 KbpsAudio quality: Noise suppression and echo cancellationNetworkWired network: 10/100 Mbps self-adaptiveWireless network: Wi-Fi 802.11 b/g/nNetwork protocol: TCP/IP, SIP, RTSPNetwork interface: 1 RJ-45 10/100 Mbps self-adaptiveAlarm input: 8-ch alarm inputsRelay output: 2TF card: Max to 32 G, SD 2.0 or lower versionRS485: 1GeneralPower supply:– IEEE802.3af, standard PoE– 12 VDC/1 APower consumption: ≤ 6 WWorking temperature: -10 °C to 55 °C (14 °F to 131 °F)Working humidity: 10% to 90%Dimensions: 200 mm × 140 mm × 15.1 mm (7.9″ × 5.5″ × 0.6″)Weight:– 683 g (with packaging)– 355 g (without packaging)This hardware acts as a primary interface for weatherproof external entry panels, working in conjunction with proximity reader stations and other commercial access management.Technical Insight:The high-impact chassis is rated for longevity, protecting internal circuitry against both weather and physical stress. Optical modules are specifically tuned for low-light conditions, providing 24/7 visibility at the entry point.Compliance: Designed for professional-grade reliability in compliance with UKCA/CE standards for HikVision security networks.Evolution-EE: Security Logistics Partner��️ Support: 100% Genuine HikVision equipment.�� Dispatch: Rapid UK warehouse logistics.�� Expertise: Direct line to technical commissioning.✅ Assurance: Certified safety and security standards.
