PSB CW363 6.5" In-Wall Speaker (Each)

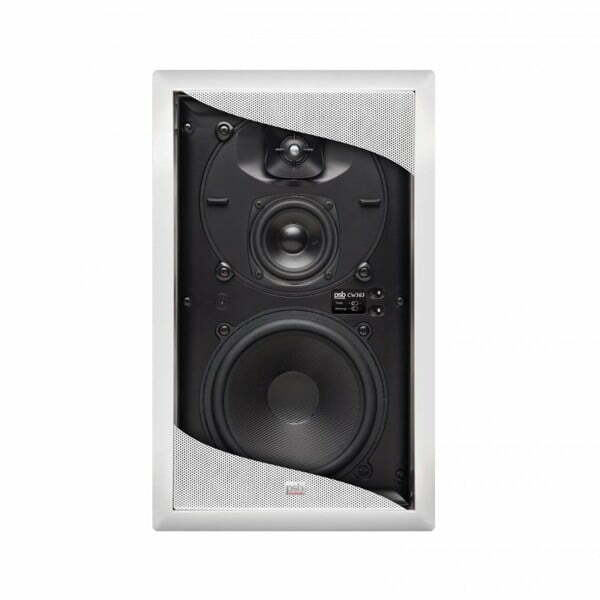

DescriptionPSB CW363 6.5″ In-Wall Speaker (Each) Part No. PS1250 The CW363 is a sophisticated 3-way in-wall system. A unique tweeter waveguide swings 30 degrees left and right (60 degrees total) to aim sonic energy toward the listening area. This SonicGuide™ is designed for an optimum amount of directivity control and to give consistent response whether aimed straight out or canted full left or right. Secondly, both this tweeter in its SonicGuide and a 3” midrange are mounted on a 6 1⁄2” rotating baffle. This gives the ability to mount the system vertically or horizontally at any height on a wall and by turning the baffle and angling the tweeter, aim sound precisely to the listener. The 6 1/2-inch woofer with a fiberglass textured polypropylene cone ensures high power handling and extended bandwidth. Features: frequency response 50-21,000 Hz (±3dB)sensitivity 87 dB4-ohm impedanceInput Power 30-150 WattsAcoustic Design: – Tweeter (Nominal) 3/4″ (19mm) – Midrange (Nominal) 3″ (76mm) – Woofer (Nominal) 6 1/2″ (165mm) – EQ Adjustment Treble and Midrange Level SwitchesDimensions (W x H x D): – Overall 9 1/2″ x 15 3/8″ x 3 1/2″ (241mm x 390mm x 89mm) – Rough-in/Mounting Hole 8 1/2″ x 14 5/16″ (215mm x 364mm) – Cover/Overlap 9/16″ (14.5mm)3-way Rotating & Swinging
