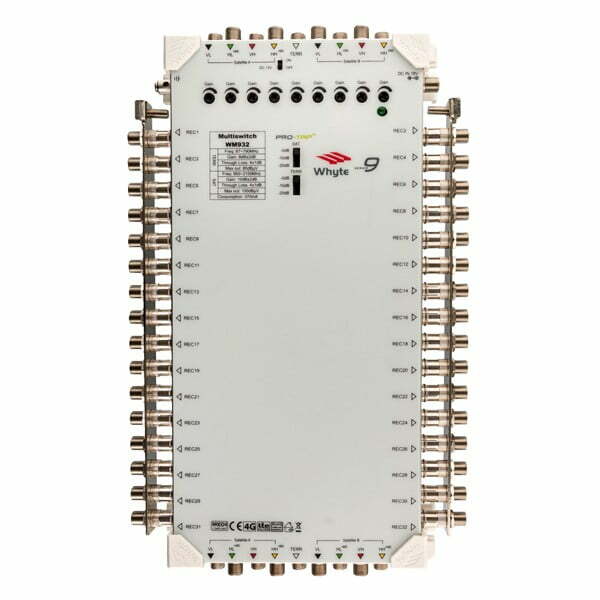

WHYTE Series 9 Multiswitch 9x32

DescriptionWHYTE Series 9 Multiswitch 9×32 (WM932) Whyte Series 9 32-Way Standalone Multiswitch is a range of 9 wire line powered Cascading Multiswitches. This range comes fitted with Pro-tap Technology. Developed by Whyte Technologies, a Pro-Tap is an in-built “Protean Tap” which enables the installer to easily select input tap losses of 0-10dB or -20dB, whilst still maintaining a trunk through loss of only 4dB. IRS System pre-planning is virtually not required as tap loss settings are selected at the commissioning stage. Features:Gain Control on all inputsComes with earth bars fittedSAT Gain 10dB / TERR Gain 8dBColour coded inputs & outputsLine Powered cascading MultiswitchSwitchable 12V DC Supply to Terr InputLED Power indicator & Inbuilt LTE filterUses receiver power to reduce demands on PSUUse As standalone when powered with a Whyte PSUSeparate SAT & TERR Pro-Taps for ease of installationComes with 9 F-Type couplers for easy connection to all Series 9 productsUse Whyte Series 9 Launch Amplifiers & Splitters to build large scale IRS Systems  Seria 9 Multiswitch Manual Seria 9 Multiswitch Specification
